Control Panels
These Control Panels are used in the NexLight 2-Wire System to house relays and other components. The panel screw-on covers are designed for either surface or flush mounting. Available factory wired (must comply with all local codes and regulations), or empty for field wiring.
Master Panels
All systems start with a master panel.
All NX-M Series panels may hold combinations of other relay types, contact inputs, motor controllers, dimmers or other components.
Include any combination of components, up to the panel size maximum spaces (x-points).
| |
 Click this icon in chart
to view specifications |
| |
| Item |
Model No. |
Description |
Specs |
 |
NX-M Series Panels |
Master Panel Series Collection

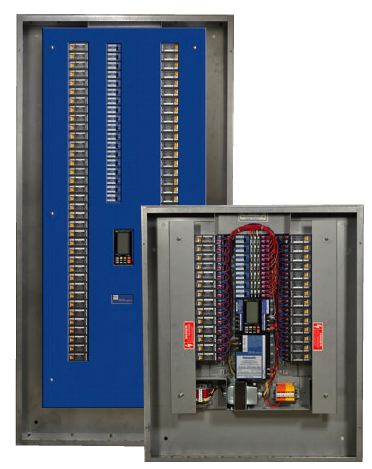

The NX-M Master Panel Series Collection of Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 1-72 relays may be used as a base panel for larger installations. |
|
 |
NX-M_700 |

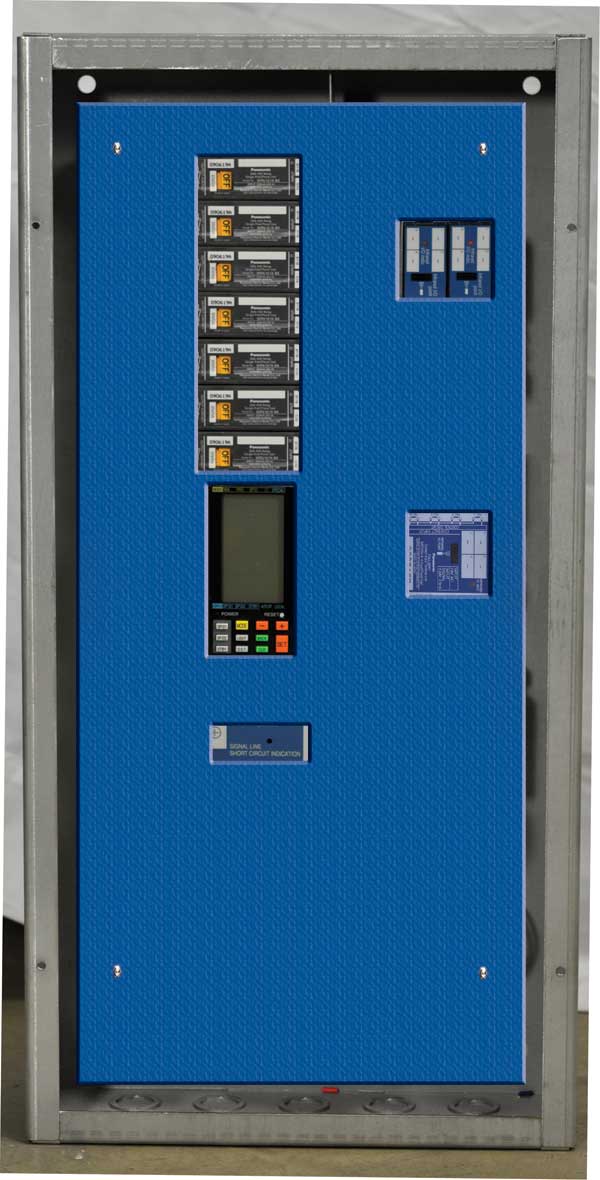

Master Panel (7 Relays)
Master Panel (7 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 1-7 relays may be used as a base panel for larger installations. |
|
 |
NX-M1600 |
Master Panel (16 Relays)
Master Panel (16 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 7-16 relays may be used as a base panel for larger installations. |
|
 |
NX-M3200 |
Master Panel (32 Relays)
Master Panel (32 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 7-32 relays may be used as a base panel for larger installations. |
|
 |
NX-M4800 |

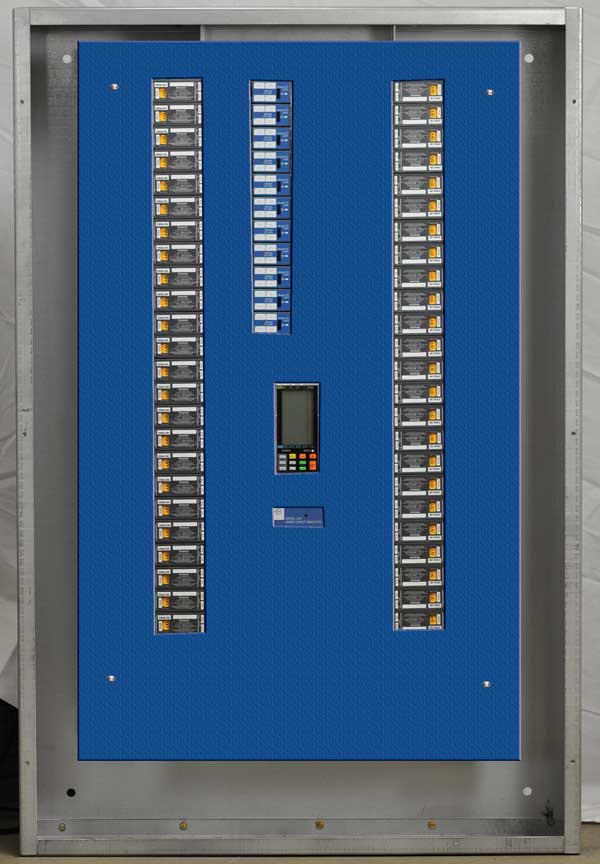

Master Panel (48 Relays)
Master Panel (48 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 7-48 relays may be used as a base panel for larger installations. |
|
 |
NX-M7200 |

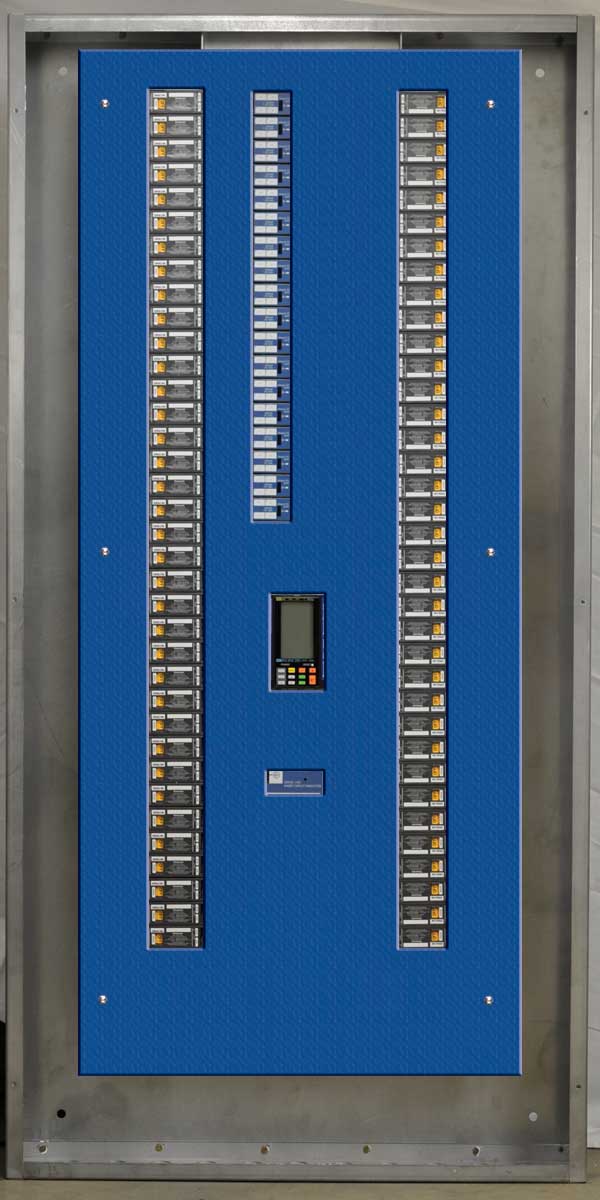

Master Panel (72 Relays)
Master Panel (72 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 7-72 relays may be used as a base panel for larger installations. |
|
|
|
 |
