Auxiliary Panels
Auxiliary panels add additional components and decentralize a system. NX-A Series panels are easily customized to include all the necessary components for the building.
NexLight builds panels that fit specific building requirements.
Include any combination of components, up to the panel size maximum spaces (x-points).
| |
 Click this icon in chart
to view specifications |
| |
| Item |
Model No. |
Description |
Specs |
 |

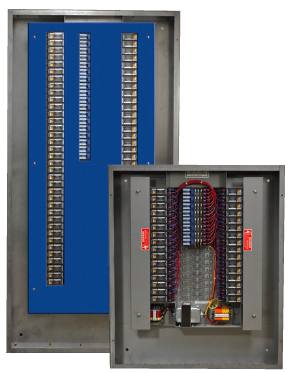

NX-A Series Panels |
Auxiliary Panel Series
The NX-A Auxiliary Panel Series Collection of pre-wired, pre-programmed, ready-to-install lighting control solution with 1-72 relays may be used as an expansion panel for larger installations. Simply add, Auxiliary or Mini panels on the 2-wire bus. |
|
 |
NX-A1600 |
Auxiliary Panel (16 Relays)
Auxiliary Panel (16 Relays) Pre-wired, pre-programmed, ready-to-install lighting control solution with 1-16 relays may be used as an expansion panel for larger installations. Simply add, Auxiliary or Mini panels on the 2-wire bus. |
|
 |

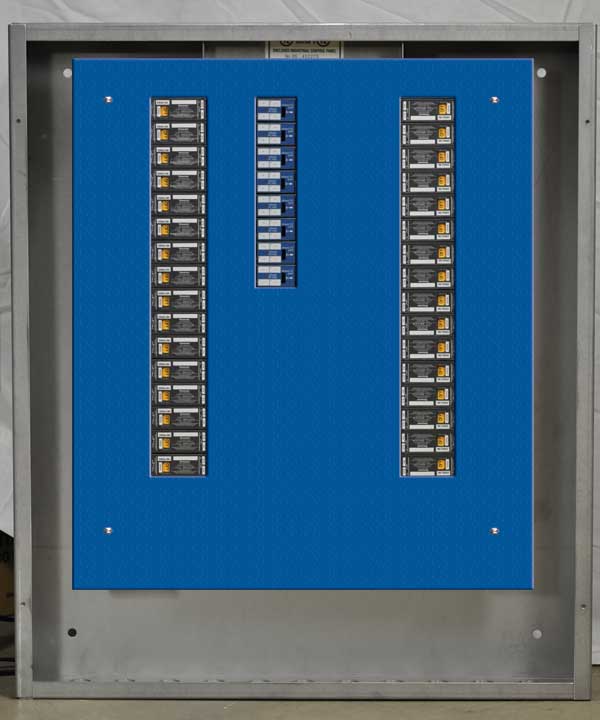

NX-A3200 |
Auxiliary Panel (32 Relays)
Auxiliary Panel (32 Relays) Pre-wired, pre-programmed, ready-to-install lighting control solution with 7-32 relays may be used as an expansion panel for larger installations. Simply add, Auxiliary or Mini panels on the 2-wire bus. |
|
 |

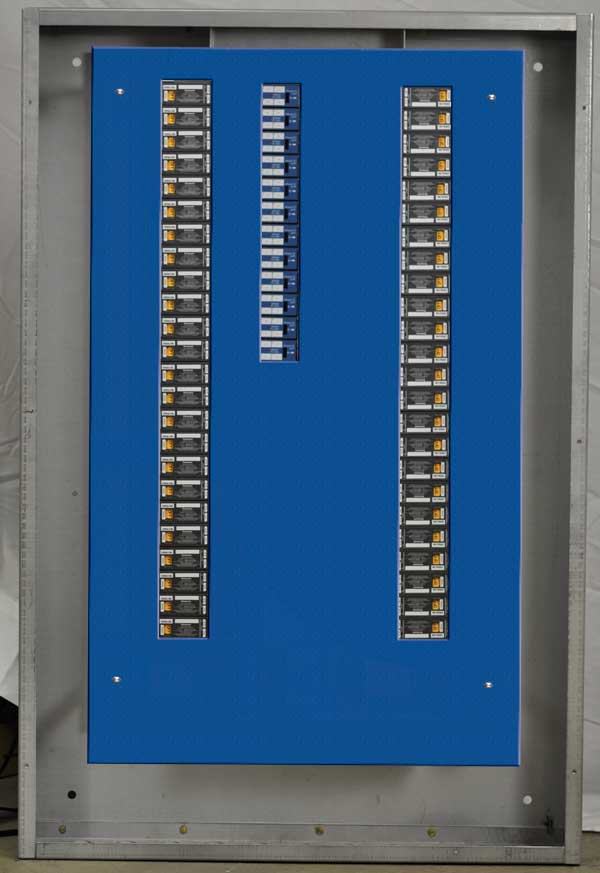

NX-A4800 |
Auxiliary Panel (48 Relays)
Auxiliary Panel (48 Relays) Pre-wired, pre-programmed, ready-to-install lighting control solution with 7-48 relays may be used as an expansion panel for larger installations. Simply add, Auxiliary or Mini panels on the 2-wire bus. |
|
 |

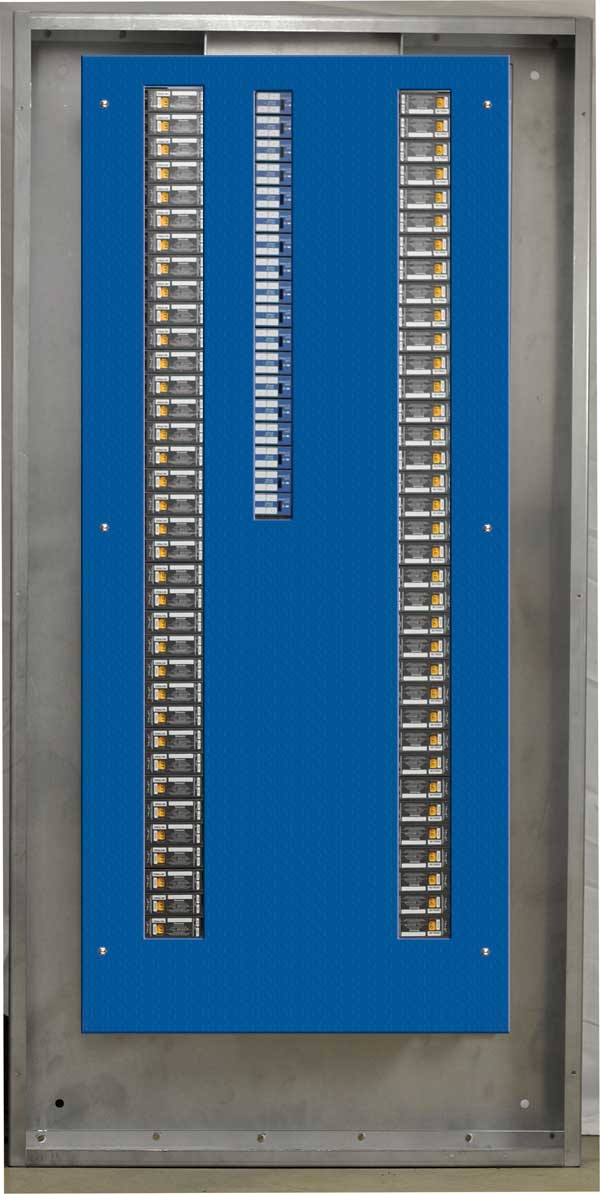

NX-A7200 |
Auxiliary Panel (72 Relays)
Auxiliary Panel (72 Relays) Pre-wired, pre-programmed, ready-to-install lighting control solution with 7-72 relays may be used as an expansion panel for larger installations. Simply add, Auxiliary or Mini panels on the 2-wire bus. |
|
|
|
 |
