RC Series Room Control Panel (4 Zone ON/OFF)

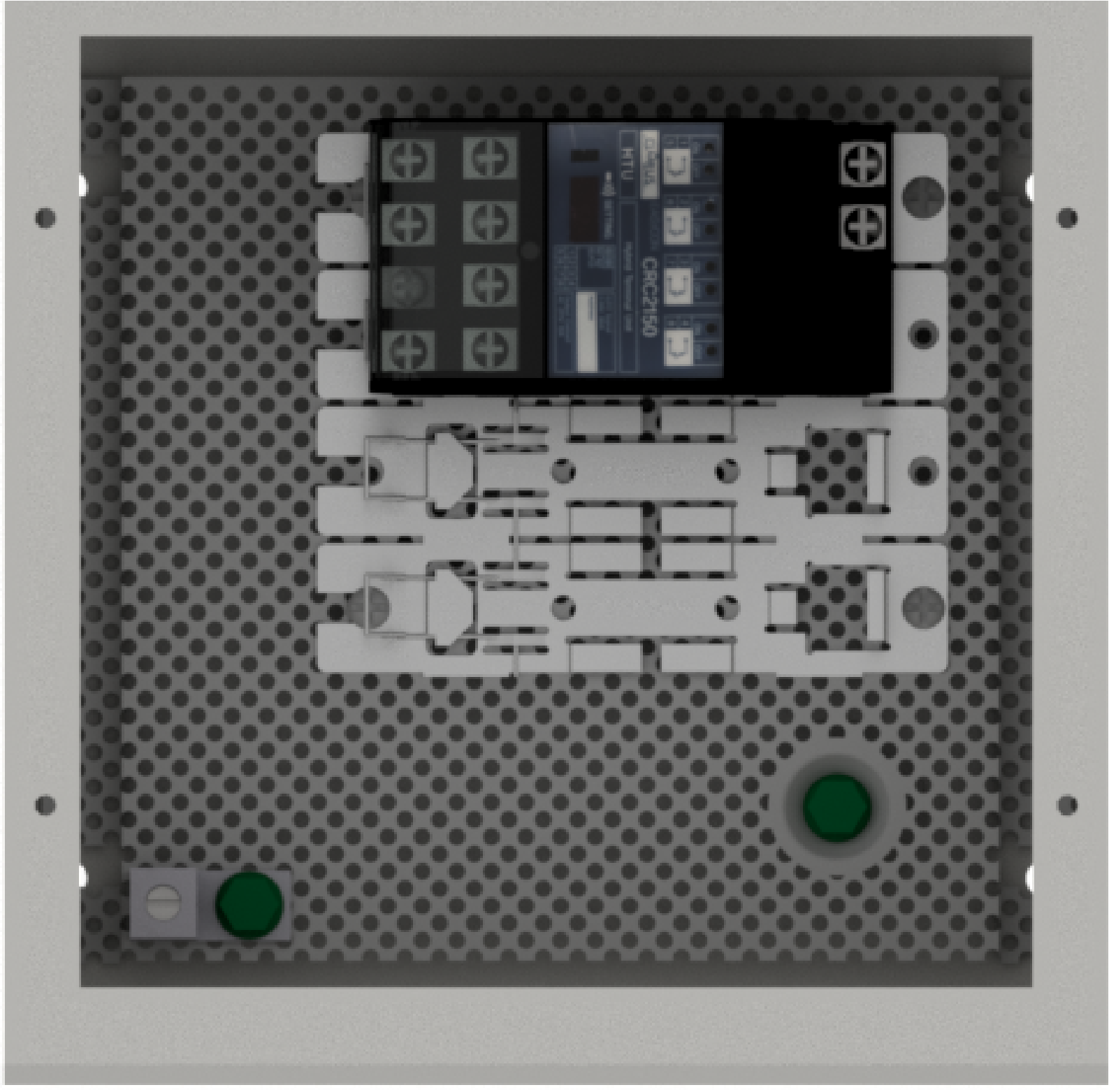

NXL-RC4 RC Series Room Control Panel (4 Zone ON/OFF)

The NexLight® RC Series room control panels provide distributed control of lighting and are available in both ON/OFF and 0-10V Dimming versions. These lighting control panels come in a NEMA/Type 1 enclosure and are factory wired in NexLight's UL508A shop. NexLight RC Series panels function in an auxiliary capacity to a main panel and can also be accessed through the Graphic User Interface (GUI) for real-time programming, monitoring and override. A NexLight main panel (R Series, D Series, or Custom Panel) is required for the RC Series panel to operate.

Resources (RC Series Room Control Panel (4 Zone ON/OFF)):

#
View
Specification Sheet
#
View

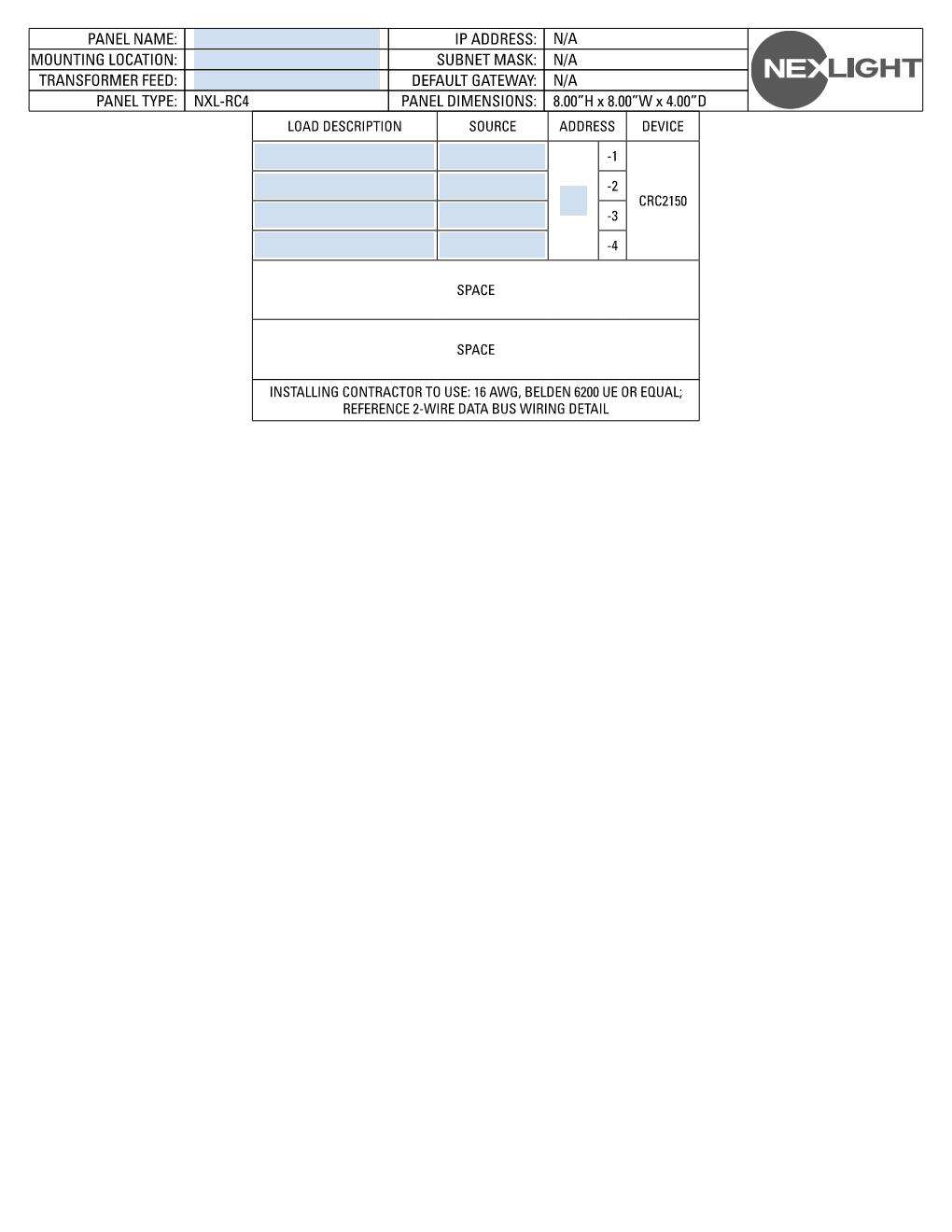

NXL-RC4 Panel Schedule
#
View
RC Series App Note
#
View
All PDFs

   Looking for spec sheets on several products?   Try our PDF Builder to pull multiple files at one time.

   Need Acrobat Reader to view our files?   Click Here
